How to Build a Wooden Patio Cover (Flat Roof + Side Wall): The Complete Step-by-Step DIY Guide
A wooden patio cover (also called a patio roof or garden shelter) gives you shade, weather protection, and a clean outdoor “room” feel. This guide is written for real DIY work: solid foundations, straight posts, a roof that drains properly, and a side wall that won’t rattle in the wind. You’ll learn the full build process, from layout to waterproofing. Plus the Batavia tools that make the job faster and cleaner.
What you’ll learn
1) Design, sizing & roof slope (the “flat roof” reality check)
A “flat” roof should never be perfectly flat. You need a small slope so water drains instead of pooling. Aim for 1–2 cm drop per meter (about 1–2% slope). This makes EPDM and roof trims work as intended.
- Typical DIY size: 3.0 x 3.0 m (about 10 x 10 ft)
- Clear height: approx. 2.2–2.5 m (depending on your situation)
- Roof overhang: 10–20 cm (looks better and protects the wall)
- Post size: often 120 x 120 mm for a sturdy feel
- Joist spacing: commonly 40–60 cm (depends on loads & timber grade)
2) Materials list (practical shopping list)
Below is a strong baseline list for a 3x3m patio cover with a side wall. Exact quantities depend on your final design and wall width. Choose durable outdoor timber (e.g., Douglas fir) and use outdoor-rated screws/bolts.
Structure
- 4x Posts (e.g., 120x120 mm)
- Main beams / ring beams (dimension to match your posts/design)
- Roof joists (e.g., 45x120 mm), spaced 40–60 cm
- Braces / knee braces (optional but strongly recommended for stiffness)
Side wall
- Wall studs & rails (e.g., 45x70 mm) for a simple wall frame
- Wall cladding (rabat / shiplap / boards)
- Membrane (optional) behind cladding for extra weather resistance
Roof build-up
- Roof decking (boards or exterior-grade sheet material)
- EPDM membrane + adhesive (for waterproofing)
- Roof edge trim (aluminum or similar) + corner pieces
- Drainage (gutter, scupper, or outlet depending on design)
3) Recommended Batavia tools for building a patio cover (incl. sanding machines)
This project is mostly measuring, cutting straight, drilling clean, sanding smooth, and fastening strong. These Batavia tools cover the essentials, especially if you want a premium finish on visible beams and cladding.
1) Straight cuts in beams & boards: 18V Cordless Circular Saw 165 mm
- Fast, clean cuts in structural timber
- Perfect for decking and cladding too
18V Cordless Circular Saw 165 mm
2) Pre-drill & assemble: 18V Drill Driver
- Pre-drilling prevents splitting and keeps everything aligned
- Best for controlled screw driving
3) Heavy-duty fastening: 18V Cordless Brushless Combi Drill 60 Nm
- Extra power for longer structural screws and tougher joints
18V Cordless Brushless Combi Drill 60 Nm
4) Smooth edges & corners: 12V Cordless Detail Sander
- Ideal for tight spaces, corners, and edge clean-up on beams
- Great for sanding cladding ends and touching up cut marks
5) Fast finish on large surfaces: 12V Cordless Orbital Sander/Polisher
- For a smooth, splinter-free finish on visible timber
- Perfect for sanding between stain coats for a cleaner final look
12V Cordless Orbital Sander/Polisher
6) Fast wall work (optional): 18V Cordless Combi Tacker
- Handy for membranes, temporary fixing, and clean stapling jobs
4) Step-by-step: how to build the patio cover (flat roof + side wall)
- Measure, mark, and square your layout. Set out your footprint with stakes and string lines. Check corners are 90° (3-4-5 method). Mark exact post positions.
- Install your foundations. Dig post holes (or prepare pad locations) and place concrete footings or post bases. Keep everything level and aligned. Let concrete cure fully.
- Mount the posts perfectly plumb. Fix posts to your bases/anchors. Use temporary braces so every post stays straight while you build.

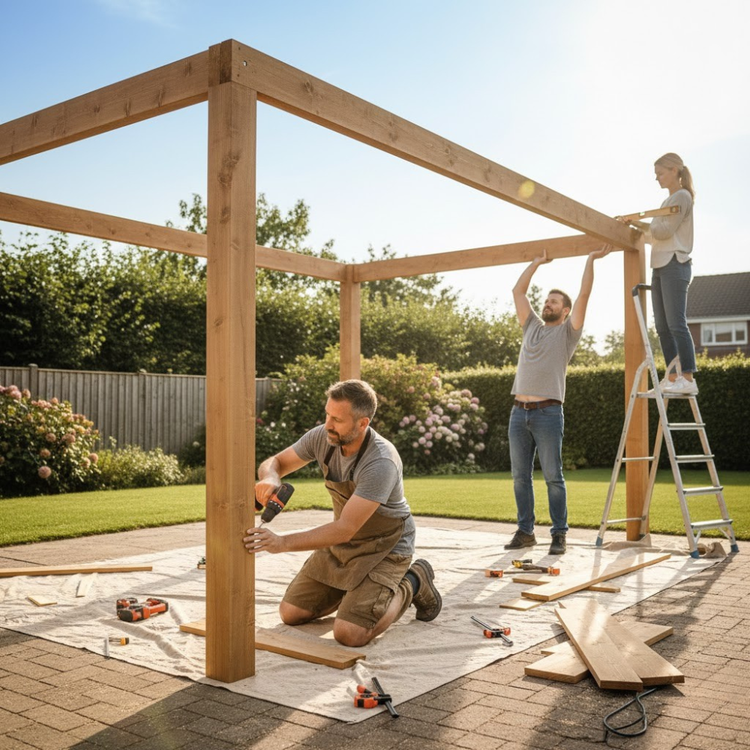

- Install the main beams (ring beams). Connect posts with main beams. Pre-drill and use structural fasteners (bolts or structural screws). Check level across the whole frame.
- Add braces for stiffness. Install diagonal braces between posts and beams to prevent sway in wind.
- Build the roof slope. Create a slight fall (1–2 cm per meter) towards the drainage side.
- Install roof joists. Space joists evenly (typically 40–60 cm). Keep them straight and consistent.
- Fit roof decking. Fix boards/sheets tightly with outdoor screws. Keep edges supported.
- Frame the side wall. Build a wall frame between the posts (studs + rails). Keep it square and add blocking for cladding edges.
- Install wall cladding. Fix boards horizontally with consistent spacing/reveal. Pre-drill near ends to avoid splits.
- Sand + protect the timber. Use the 12V Detail Sander for corners and the 12V Orbital Sander/Polisher for large surfaces. Apply 2 coats of exterior stain/paint (lightly sand between coats).
- Waterproof the roof with EPDM + edge trims. Clean the decking, apply adhesive, lay EPDM carefully, press out air pockets, then finish with roof edge trims and a proper outlet/gutter.
Tip: Don’t skip the sanding step if your beams are visible. It’s the fastest way to make the build look expensive.
5) Common mistakes to avoid
- No roof slope: water pooling shortens roof life fast
- Posts not plumb: everything else becomes a fight
- Skipping braces: the structure will wobble in wind
- Inconsistent joist spacing: roof decking looks uneven
- No pre-drilling: splits in visible timber ruin the finish
- Wrong fasteners: indoor screws will rust outdoors
FAQ: Building a wooden patio cover
How do I make sure my patio cover is perfectly square?
Use string lines and the 3-4-5 method: measure 3 units along one side, 4 units along the other, and the diagonal should be 5 units when the corner is 90°.
What’s the minimum slope for a “flat” roof?
Aim for 1–2% slope (about 1–2 cm per meter) so water drains reliably.
EPDM or roofing felt: which is better?
EPDM is commonly chosen for durability on flat roofs. Roofing felt can work too, but seams and installation quality matter a lot.
How long does it take to build?
A typical 3x3m build with a side wall is often a multiple weekend project for 2 or more people. Assuming materials are prepped and weather cooperates.
Ready to build your patio cover?
Build square, brace properly, sand visible timber, and waterproof with care. That’s the formula for a patio cover that looks professional and lasts.
